Cast-iron jet burner - VNG/BH001

Cast-iron jet burner - VNG/BH001

Details

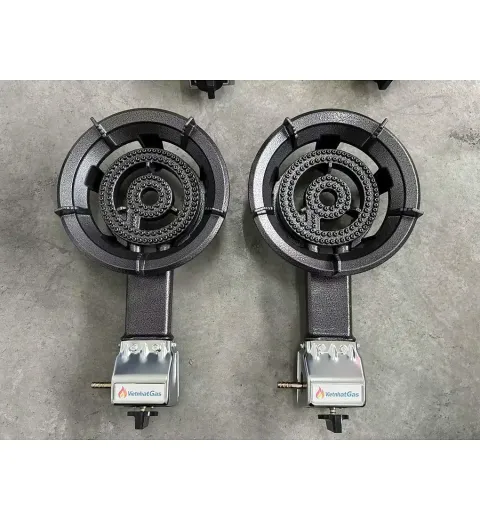

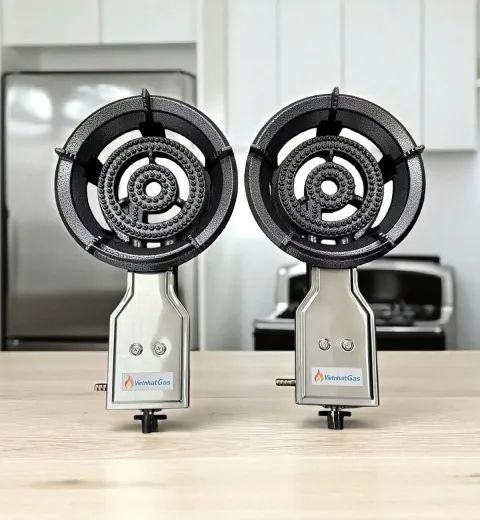

VNG/BH001 is a jet burner with a cast-iron body and burner head, delivering a powerful and focused flame. It is used where large pots must be cooked continuously: industrial canteens, restaurants, broth kitchens, sweet soup stalls and sticky rice stalls. The model suits LPG dealers, commercial kitchen equipment suppliers and businesses wanting a jet burner under their own brand.

Construction of the cast-iron jet burner

• Cast-iron burner body: heat-resistant and durable during hours of continuous cooking.
• Burner head (jet nozzle) with many small holes: produces a powerful flame focused on the bottom of the pot.
• Ignition: manual (pilot) or electronic, selected per order.
• Gas control valve: adjusts the amount of gas fed to the burner, and thus the strength of the flame.
• Sturdy pot support: holds large pots from 30 to 100 liters.

Gas supply and installation

BH001 uses LPG supplied from a 12kg or 45kg cylinder via a pressure regulator. This differs from portable gas stoves using canisters: jet burners are usually installed in a fixed position and connected to a large cylinder. VietnhatGas manufactures 12 kg LPG cylinders and 45 kg LPG cylinders, so dealers and gas filling stations can source burners from the same supplier as their cylinders.

Installation and usage precautions:

• Use a pressure regulator suitable for the burner and cylinder; check all connections for leaks before lighting.
• Place the burner on a flat, heat-resistant surface in a well-ventilated area, away from flammable materials.
• Keep the gas cylinder well away from the flame, out of direct sunlight and away from heat sources.
• Close the cylinder valve at the end of each cooking shift.

Private-label jet burner manufacturing

BH001 is available for OEM or ODM manufacturing. Partners can choose the ignition type (manual or electronic), apply their brand and create their own packaging. For LPG dealers, adding a jet burner under the same brand makes it possible to offer a complete cylinder-and-burner set to canteens and restaurants. See the models on the cooperation models page. Minimum order quantity and delivery time per quotation.
